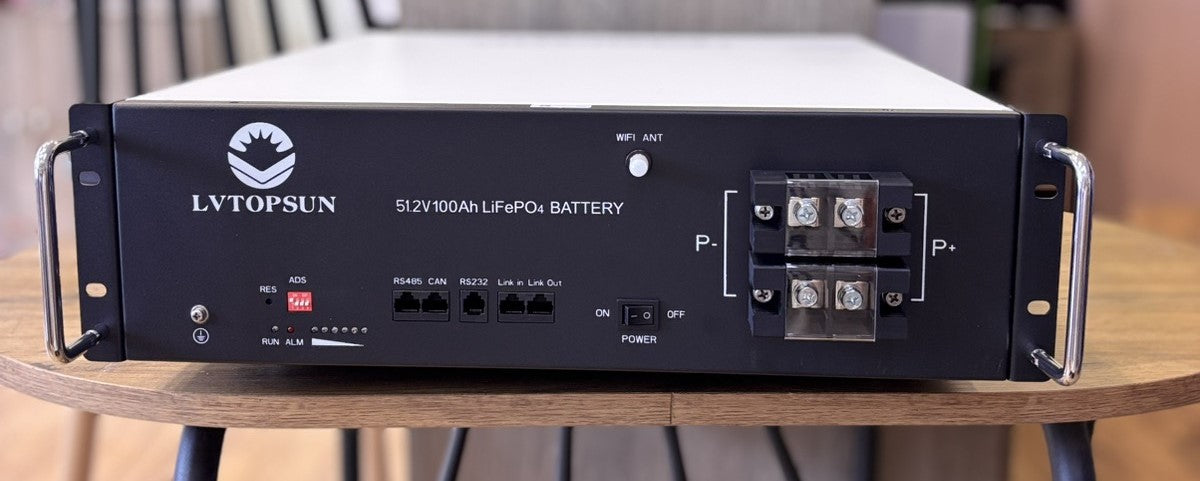

5.12kWh LiFePO4 Rack/Wall Battery TOPSUN 51.2V 100Ah 6000 Cycles WiFi Bluetooth

General Information:

The TOPSUN 5.12kWh battery uses high-quality LiFePO4 cells with long lifespan and built-in BMS for maximum safety and performance. Suitable for wall or floor installation, ideal for solar systems, UPS and off-grid applications.

Features:

• Nominal Voltage: 51.2V DC
• Capacity: 100Ah
• Energy: 5.12kWh
• Communication: CAN / RS485 / RS232 / WiFi / Bluetooth
• Long Lifespan: Over 6000 cycles at 90% DoD
• BMS Protection: Overcharge, over-discharge, short circuit, overheating protection
• Scalability: Up to 15 batteries in parallel
• Installation: Wall-mounted or rack-mounted
• Display: LED status indicators

Technical Specifications:

• Working Voltage: 45.6V – 56.16V
• Max Charge Current: 50A
• Max Discharge Current: 100A
• Max Charge Power: 2560W
• Max Discharge Power: 5120W
• Depth of Discharge: 90%
• Cycle Life: 6000 cycles

Mechanical Specifications:

• Dimensions: 440 x 500 x 132 mm
• Weight: ~47.3 kg
• IP Rating: IP20
• Operating Temperature: Charge: 0~45°C / Discharge: -20~55°C

Perfect solution for residential and commercial solar energy storage systems with smart monitoring via WiFi and Bluetooth connectivity.
